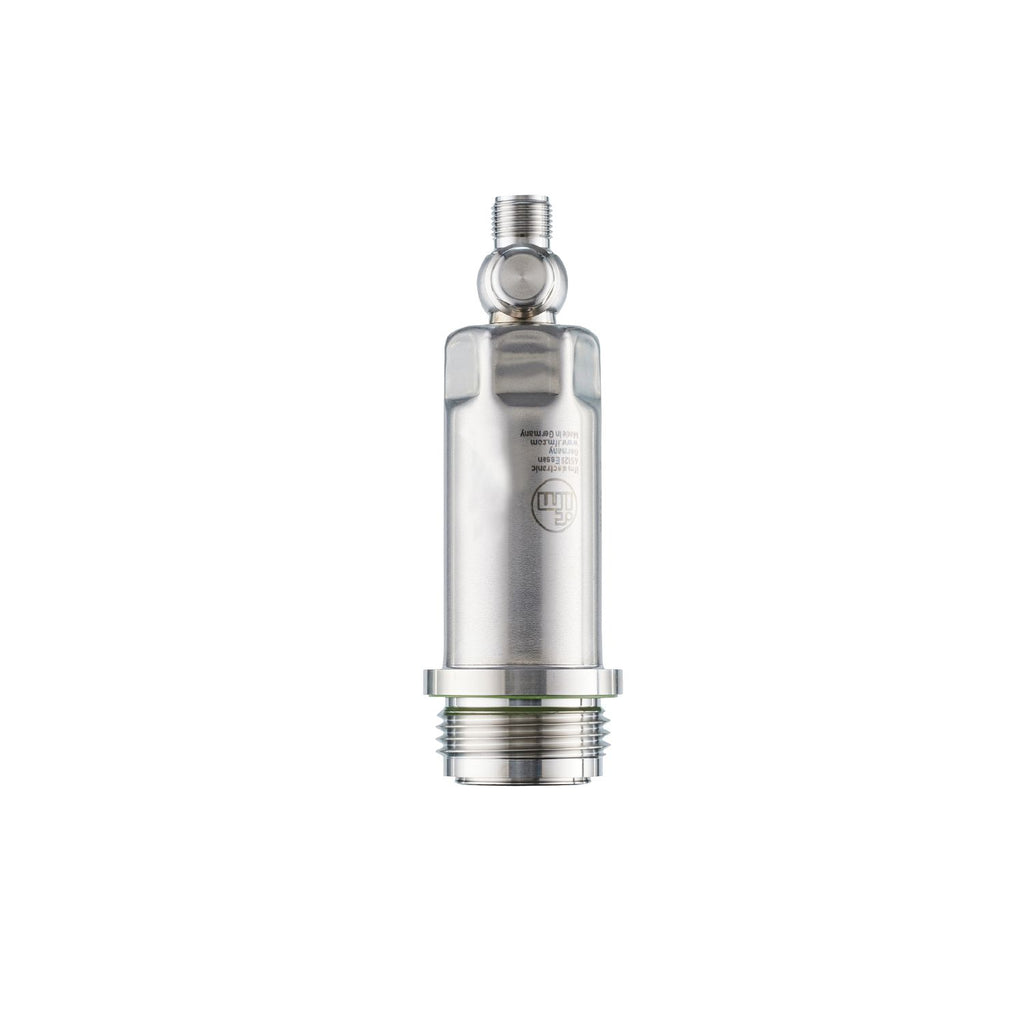

The IFM PM1609 is a pressure sensor measuring -1...1 bar via Clamp DN25-DN40 (DIN 32676). Output: 4...20 mA / IO-Link V1.1. IP69K-rated hygienic 316L stainless design for Hygienic / Food Processing, Dairy, Beverage, Pharmaceutical, CIP/SIP.
PRODUCT SPECIFICATIONS
Model Number: PM1609
Internal Stock Code: CAT-PM1609
Product Category: Pressure Sensor
Measuring Range / Key Spec: -1...1 bar
Process Connection: Clamp DN25-DN40 (DIN 32676)
Output / Interface: 4...20 mA / IO-Link V1.1
IP Protection: IP69K
Application: Hygienic / Food Processing, Dairy, Beverage, Pharmaceutical, CIP/SIP
Net Weight: 0.25 kg
VENDOR & COMPLIANCE
Vendor: IFM Electronic
Standards: IEC 60947-5-2; IO-Link V1.1 (IEC 61131-9); EN 61326-1 (EMC); EHEDG, 3-A, FDA hygienic compliance where applicable.
OFFICIAL TECHNICAL DATASHEET
Full specs, wiring diagrams, IO-Link maps and CAD drawings:
https://www.ifm.com/us/en/product/PM1609
