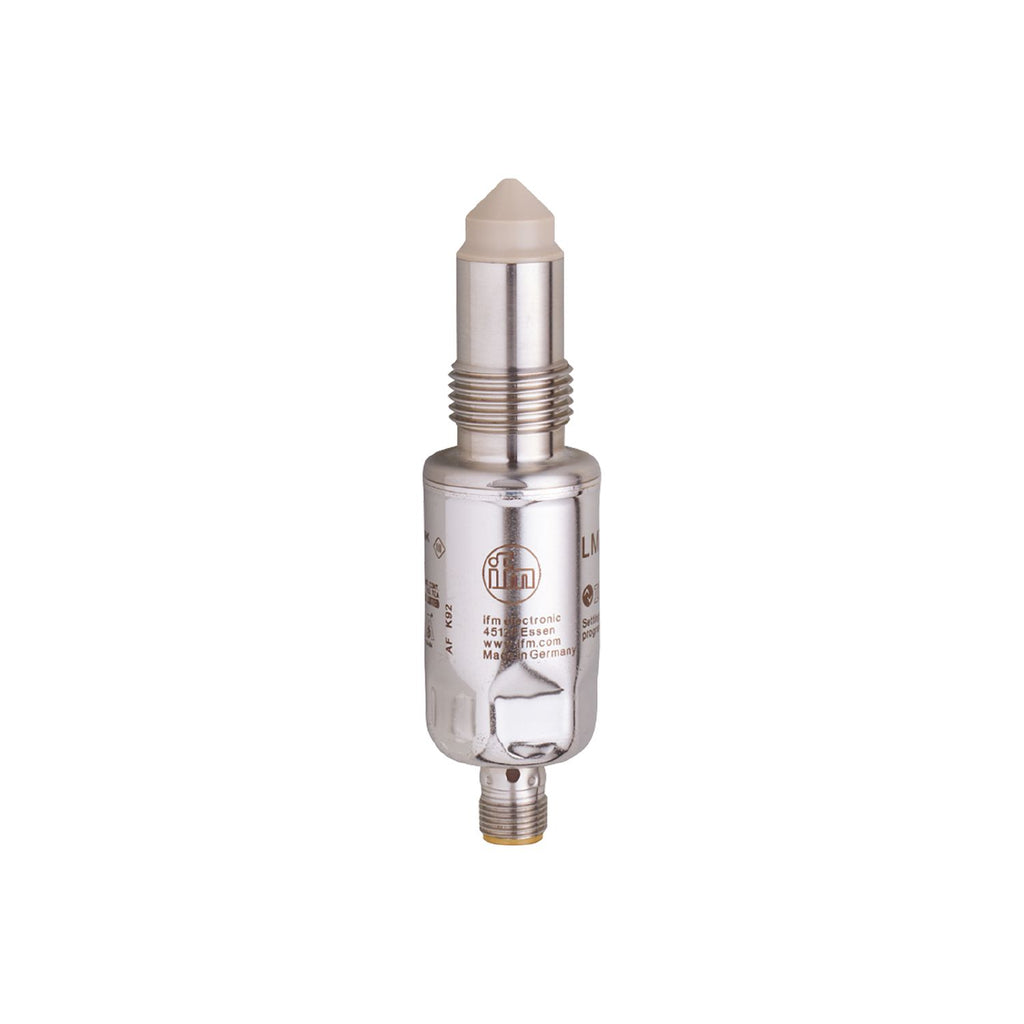

The IFM LI2242 is a leakage / level sensor measuring Leakage/level, 273mm probe via G 1/2 Thread. Output: PNP NO/NC / IO-Link. IP69K-rated hygienic 316L stainless design for Leakage Detection, Tank Level, Hygienic.
PRODUCT SPECIFICATIONS
Model Number: LI2242
Internal Stock Code: INST000000383
Product Category: Leakage / Level Sensor
Measuring Range / Key Spec: Leakage/level, 273mm probe
Process Connection: G 1/2 Thread
Output / Interface: PNP NO/NC / IO-Link
IP Protection: IP69K
Application: Leakage Detection, Tank Level, Hygienic
Net Weight: 0.12 kg
VENDOR & COMPLIANCE
Vendor: IFM Electronic
Standards: IEC 60947-5-2; IO-Link V1.1 (IEC 61131-9); EN 61326-1 (EMC); EHEDG, 3-A, FDA hygienic compliance where applicable.
OFFICIAL TECHNICAL DATASHEET
Full specs, wiring diagrams, IO-Link maps and CAD drawings:
https://www.ifm.com/us/en/product/LI2242
