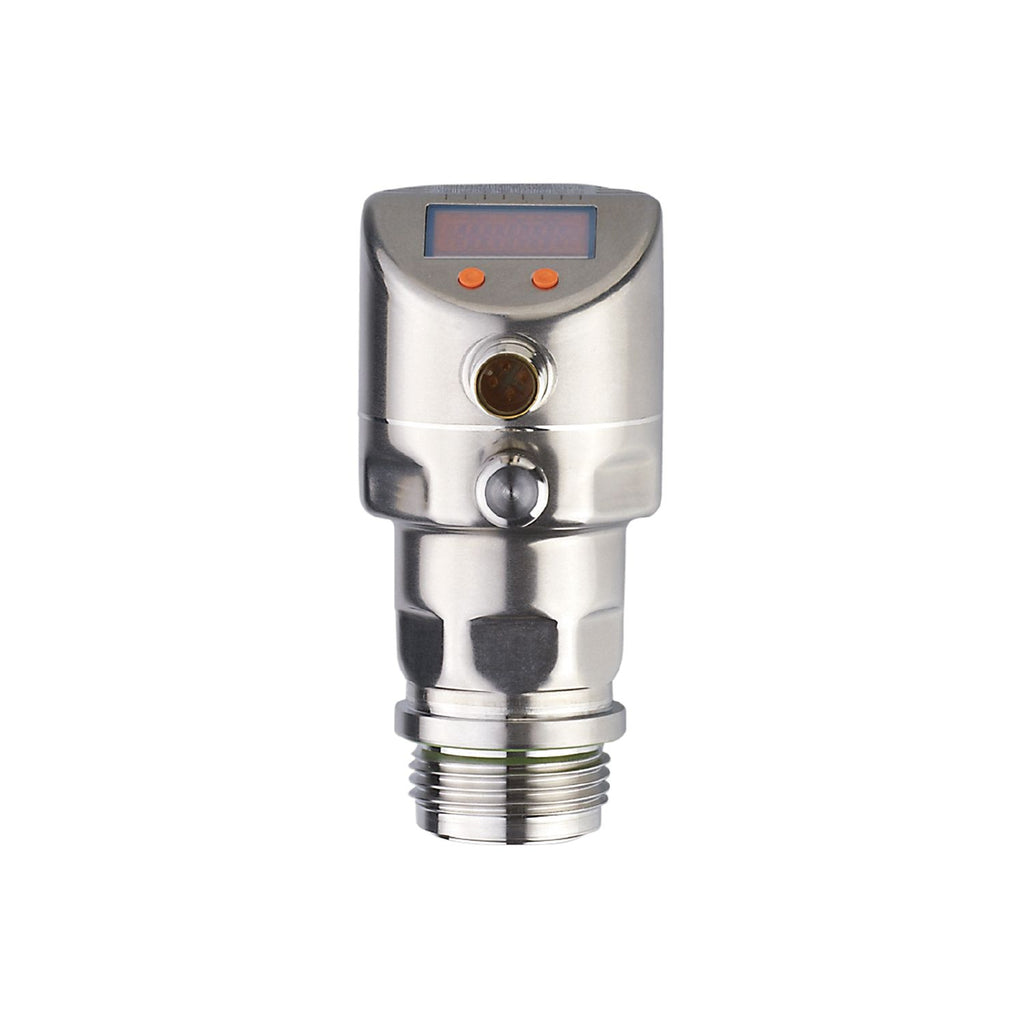

The IFM PI2205 is a pressure sensor with display measuring -1...4 bar via Clamp DN25-DN50 (high-temp to 200C). Output: 4...20 mA / IO-Link V1.1. IP69K-rated hygienic 316L stainless design for Hygienic / High-Temperature Process, Pharmaceutical, CIP/SIP.
PRODUCT SPECIFICATIONS
Model Number: PI2205
Internal Stock Code: CAT-PI2205
Product Category: Pressure Sensor with Display
Measuring Range / Key Spec: -1...4 bar
Process Connection: Clamp DN25-DN50 (high-temp to 200C)
Output / Interface: 4...20 mA / IO-Link V1.1
IP Protection: IP69K
Application: Hygienic / High-Temperature Process, Pharmaceutical, CIP/SIP
Net Weight: 0.29 kg
VENDOR & COMPLIANCE
Vendor: IFM Electronic
Standards: IEC 60947-5-2; IO-Link V1.1 (IEC 61131-9); EN 61326-1 (EMC); EHEDG, 3-A, FDA hygienic compliance where applicable.
OFFICIAL TECHNICAL DATASHEET
Full specs, wiring diagrams, IO-Link maps and CAD drawings:
https://www.ifm.com/us/en/product/PI2205
